A
B

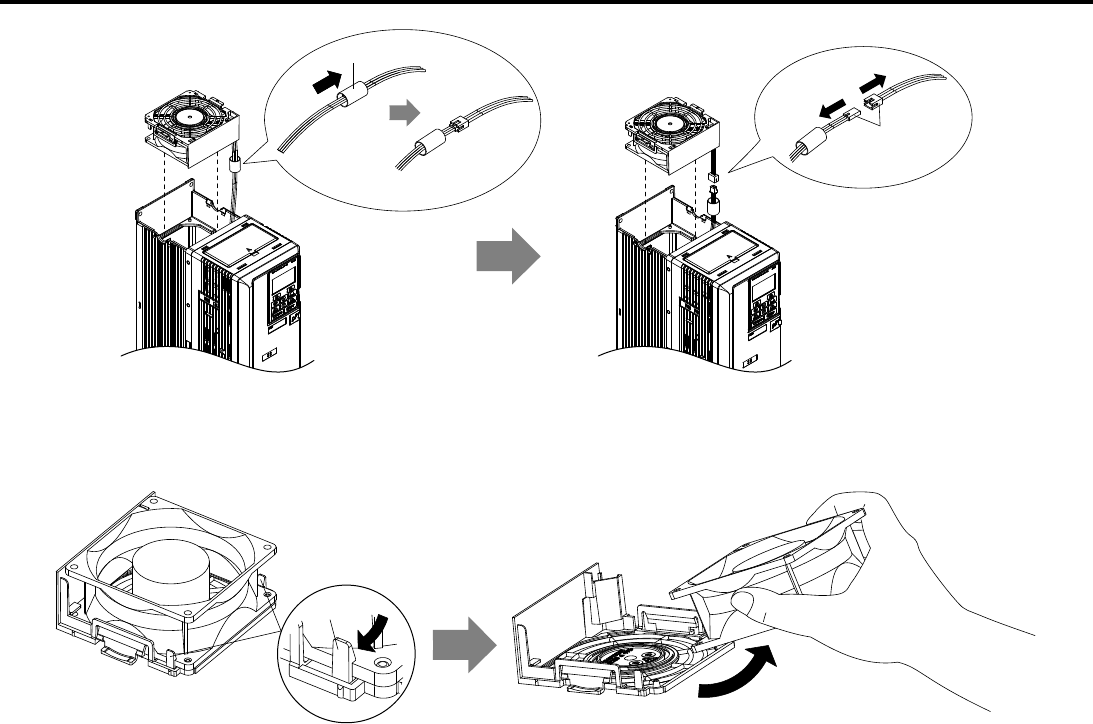

A – Protective tube B – Fan connector
Figure 7.5 Remove the Fan Connector: 2A0011 to 2A0059, 4A0005 to 4A0040, and 4A0052ooB
4.
Pull back on the hook to free the cooling fan unit. Lift the cooling fan diagonally to remove it from the drive.
Hook
Figure 7.6 Remove the Cooling Fan: 2A0011 to 2A0059, 4A0005 to 4A0040, and 4A0052ooB
7.5 Drive Cooling Fans
274
YASKAWA ELECTRIC SIEP YAIZ1B 01D YASKAWA AC Drive – Z1000 Bypass Technical Manual
