208 Vac (Z1B1D088 to D169)
480 Vac (Z1B1B096 to B180)
Recommended
Conduit
Entrance Area
Ø 0.53
H2
H
D1
D
W4
H1
6.00 min.
5.00 min.
W1
H3
D3
Ø 2.00
W
W3
W2
D2
Units = inches

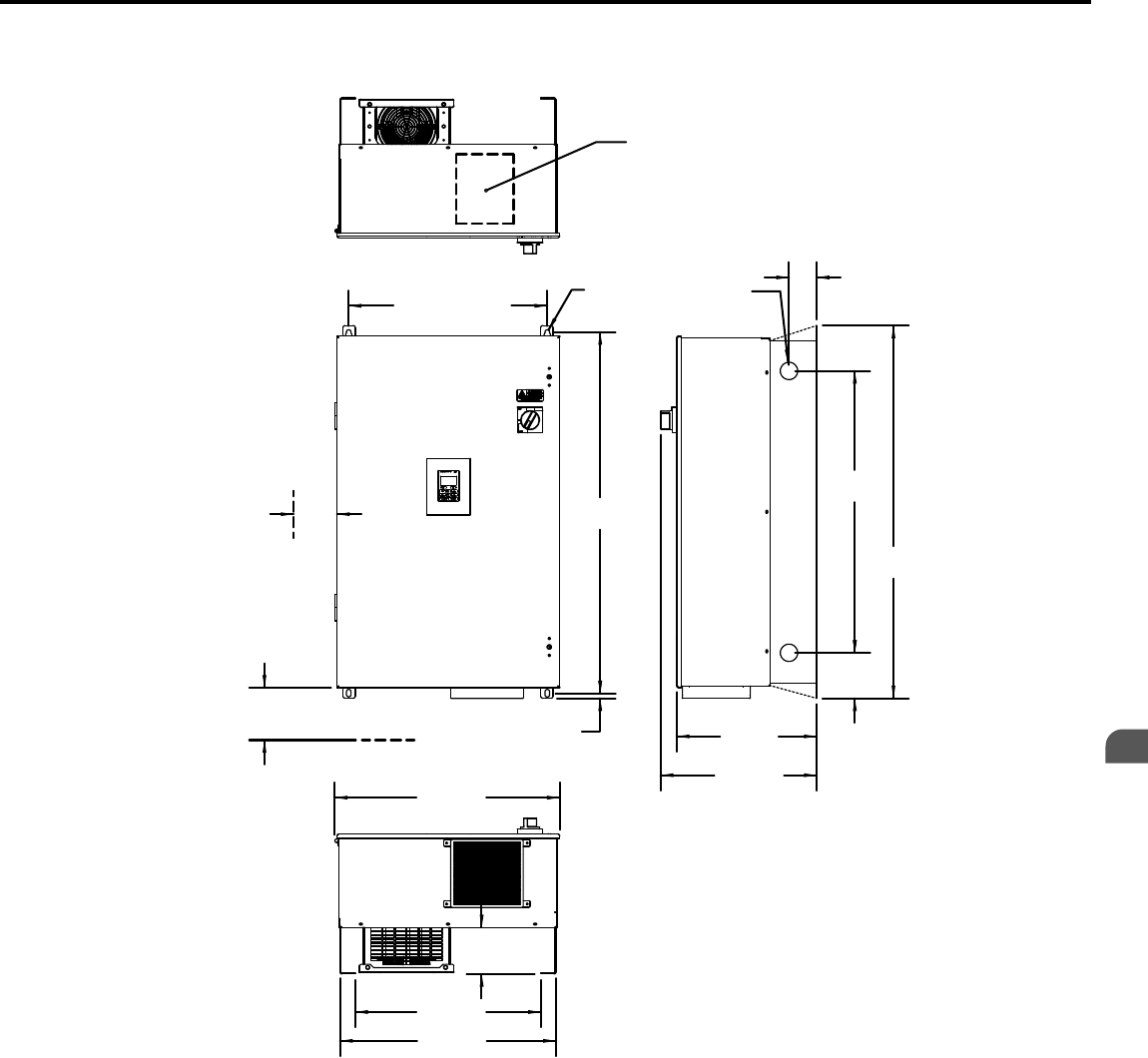

2.2 Mechanical Installation
YASKAWA ELECTRIC SIEP YAIZ1B 01D YASKAWA AC Drive – Z1000 Bypass Technical Manual
45
2
Mechanical Installation
