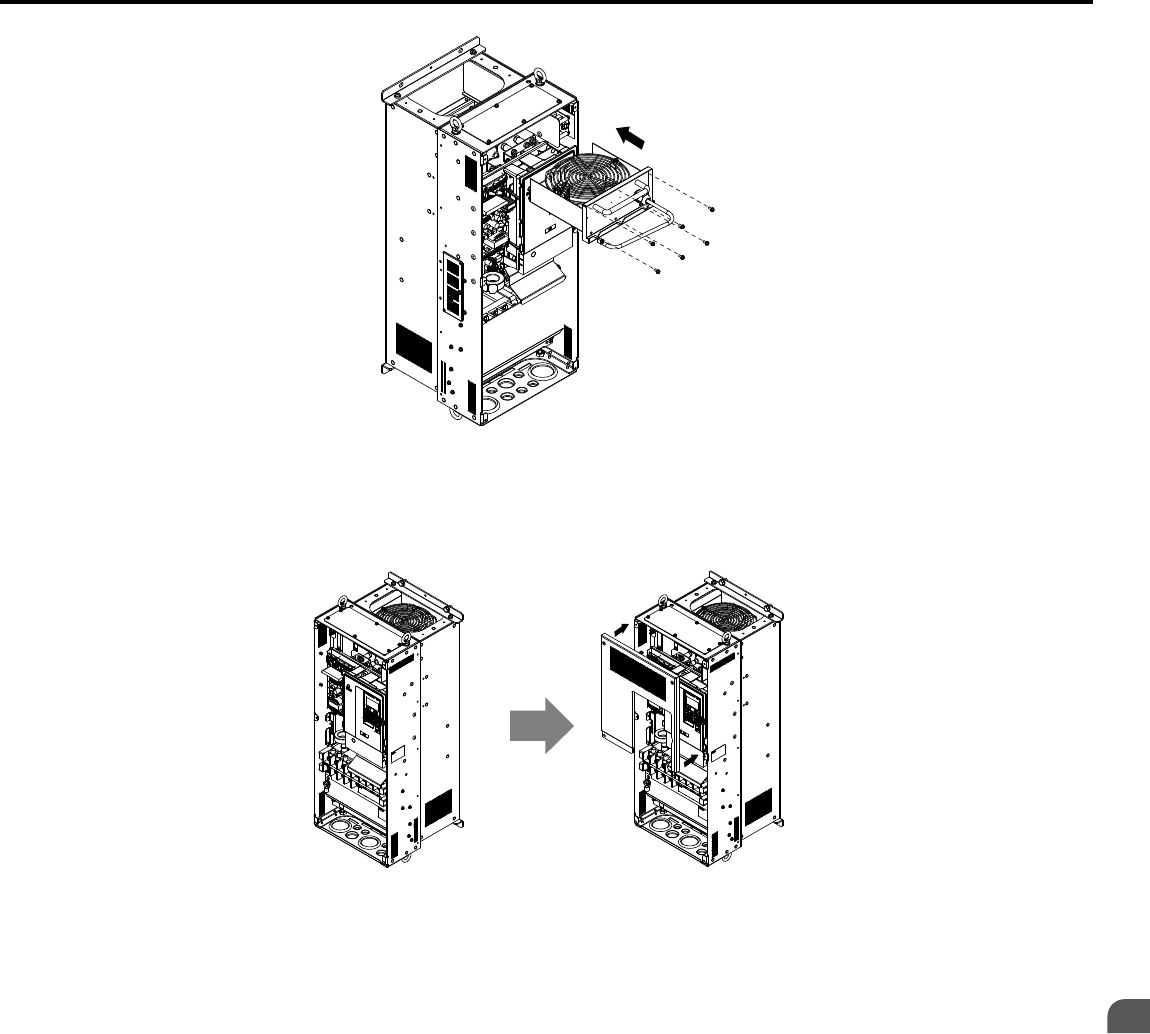

Figure 7.37 Insert the Cooling Fan Unit: 4A0124
6.
Reverse procedure steps 2 and 3 in Removing and Disassembling the Cooling Fan Unit: 4A0124 to reattach the
drive cover. After reattaching the drive cover, reattach the terminal cover. Refer to the User Manual packaged with
the drive for details on reattaching the terminal cover.
Figure 7.38 Reattach the Drive Cover: 4A0124
7.
Turn on the power supply and set o4-03 to 0 to reset the Maintenance Monitor cooling fan operation time.
7.5 Drive Cooling Fans
YASKAWA ELECTRIC SIEP YAIZ1B 01D YASKAWA AC Drive – Z1000 Bypass Technical Manual
287
7
Periodic Inspection &
Maintenance
