1.5 Bypass Component Names
This section gives an overview of the Z1000 Bypass components described in this manual.
Note: Refer to Using the HOA Keypad on page 91 for a description of the HOA keypad.
n
208 Vac Z1B1D002 to D074
480 Vac Z1B1B001 to B077
A
D
F
G
I
B
H
H
J
C
E
A – Bypass bracket mounting hole
B – Bypass front cover screw
C – Disconnect shaft
D – Bypass enclosure
E – Disconnect handle
F – Bypass front cover
G – HOA keypad
H – Drive mounting screw
I – Z1000 drive
J – Z1000 drive digital operator blank
cover

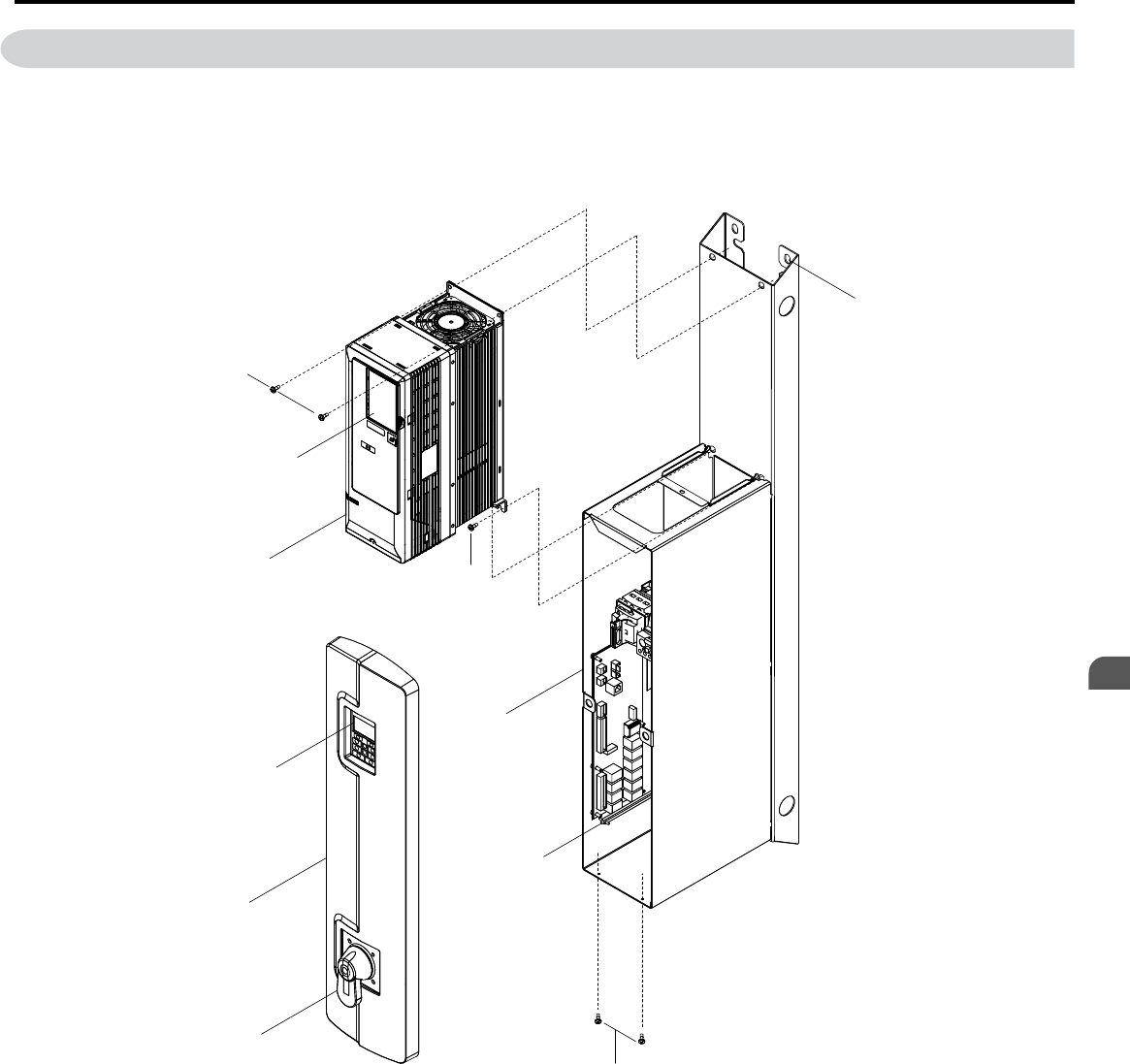

Figure 1.5 Exploded View of Components (Z1B1D002)
1.5 Bypass Component Names
YASKAWA ELECTRIC SIEP YAIZ1B 01D YASKAWA AC Drive – Z1000 Bypass Technical Manual
33
