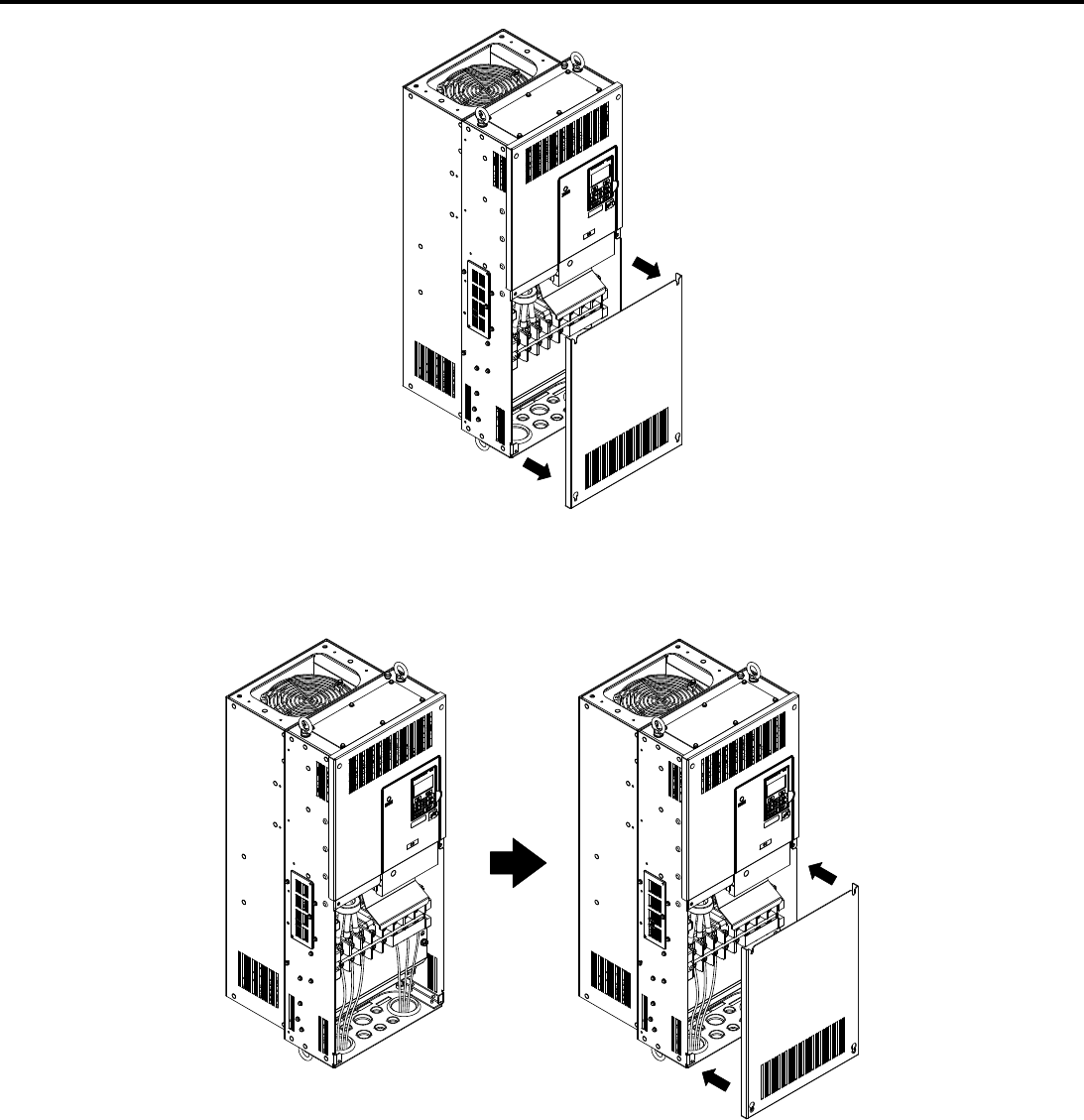

Figure 3.23 Removing the Terminal Cover
Reattaching the Terminal Cover
After wiring, double-check connections and reattach the terminal cover.
Figure 3.24 Reattaching the Terminal Cover
3.5 Control Circuit Wiring
74
YASKAWA ELECTRIC SIEP YAIZ1B 01D YASKAWA AC Drive – Z1000 Bypass Technical Manual
