Removing the Front Cover
Drives Mounted on Z1000 Bypass Models Z1B1D002 to D059 and B001 to B52L
1.
Loosen the front cover screw using a #2 Phillips screwdriver. Screw sizes vary by drive model.

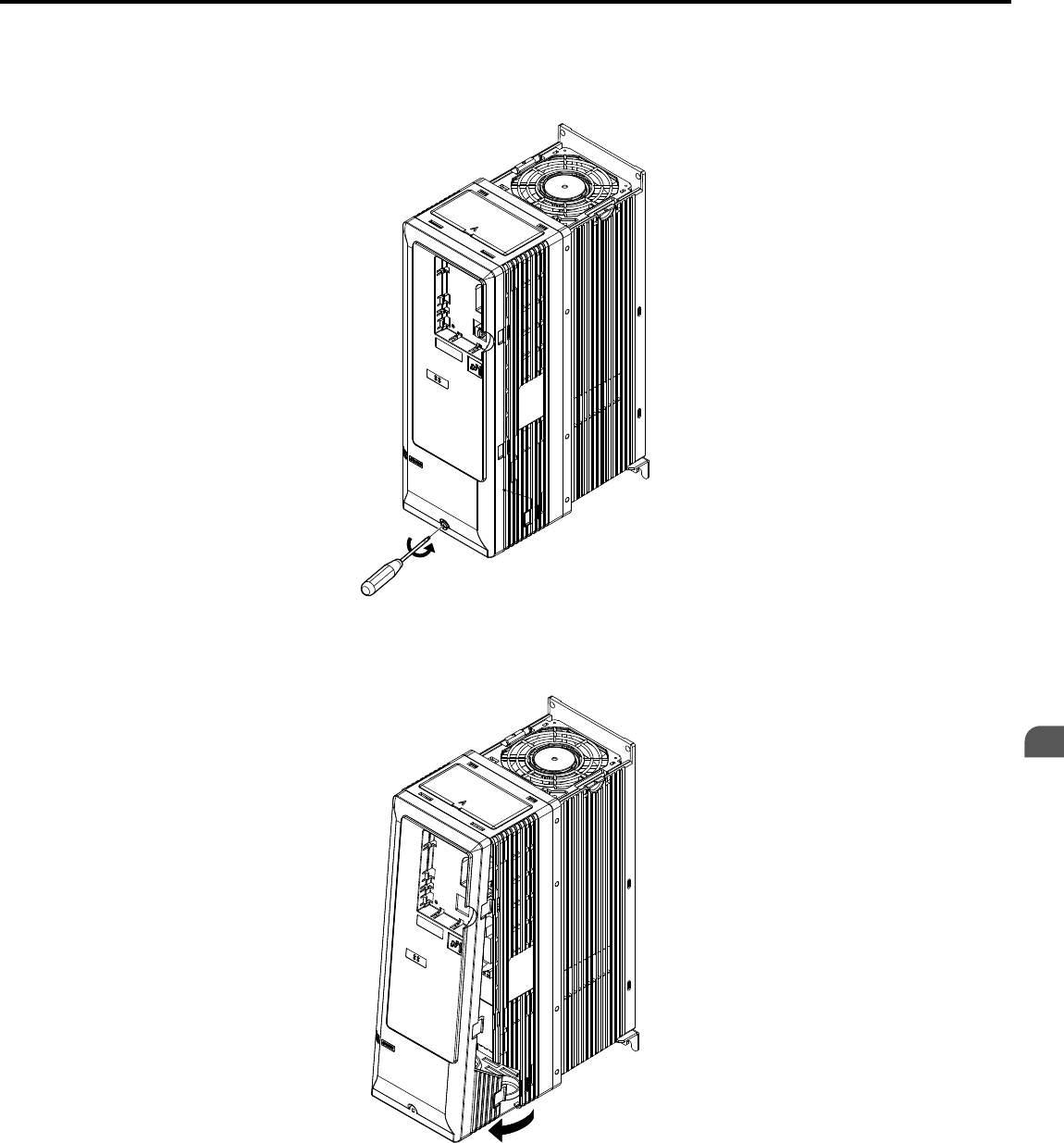

Figure 3.25 Remove the Front Cover (Models Z1B1D002 to D059 and B001 to B52L)
2.
Push in on the tab located on the bottom of the front cover and gently pull forward to remove the front cover.
Figure 3.26 Remove the Front Cover (Models Z1B1D002 to D059 and B001 to B52L)
3.5 Control Circuit Wiring
YASKAWA ELECTRIC SIEP YAIZ1B 01D YASKAWA AC Drive – Z1000 Bypass Technical Manual
75
3
Electrical Installation
