Main Input Circuit Wire Routing
Figure 3.17 and Figure 3.18 show suggested wire entry and bending areas for representative wall mount enclosures.
B
C
A
A – Control circuit wiring
B – Main input circuit
C – Motor output circuit

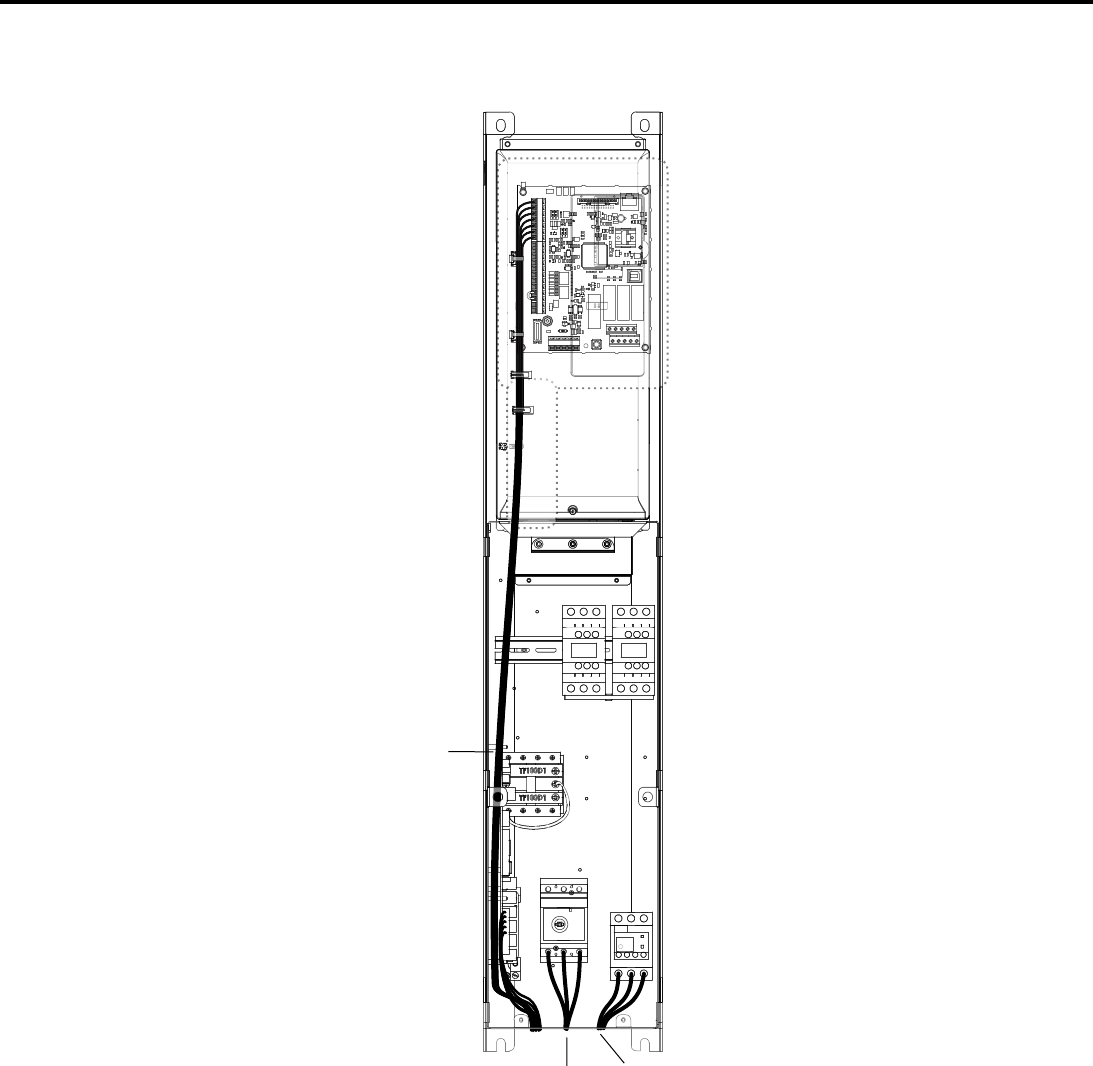

Figure 3.17 Bypass Wire Routing Example (Models Z1B1D002 to D074 and B001 to B077)
3.4 Input and Output Power Wiring Connections
68
YASKAWA ELECTRIC SIEP YAIZ1B 01D YASKAWA AC Drive – Z1000 Bypass Technical Manual
