HOA Keypad Keys and Displays
F2F1
ESC
M M
AUTO OFF
ENTERRESET
ALM
DIGITAL OPERATOR JVOP-183
HAND
12
11
9
8
1
2
3
10
4 5 6 7

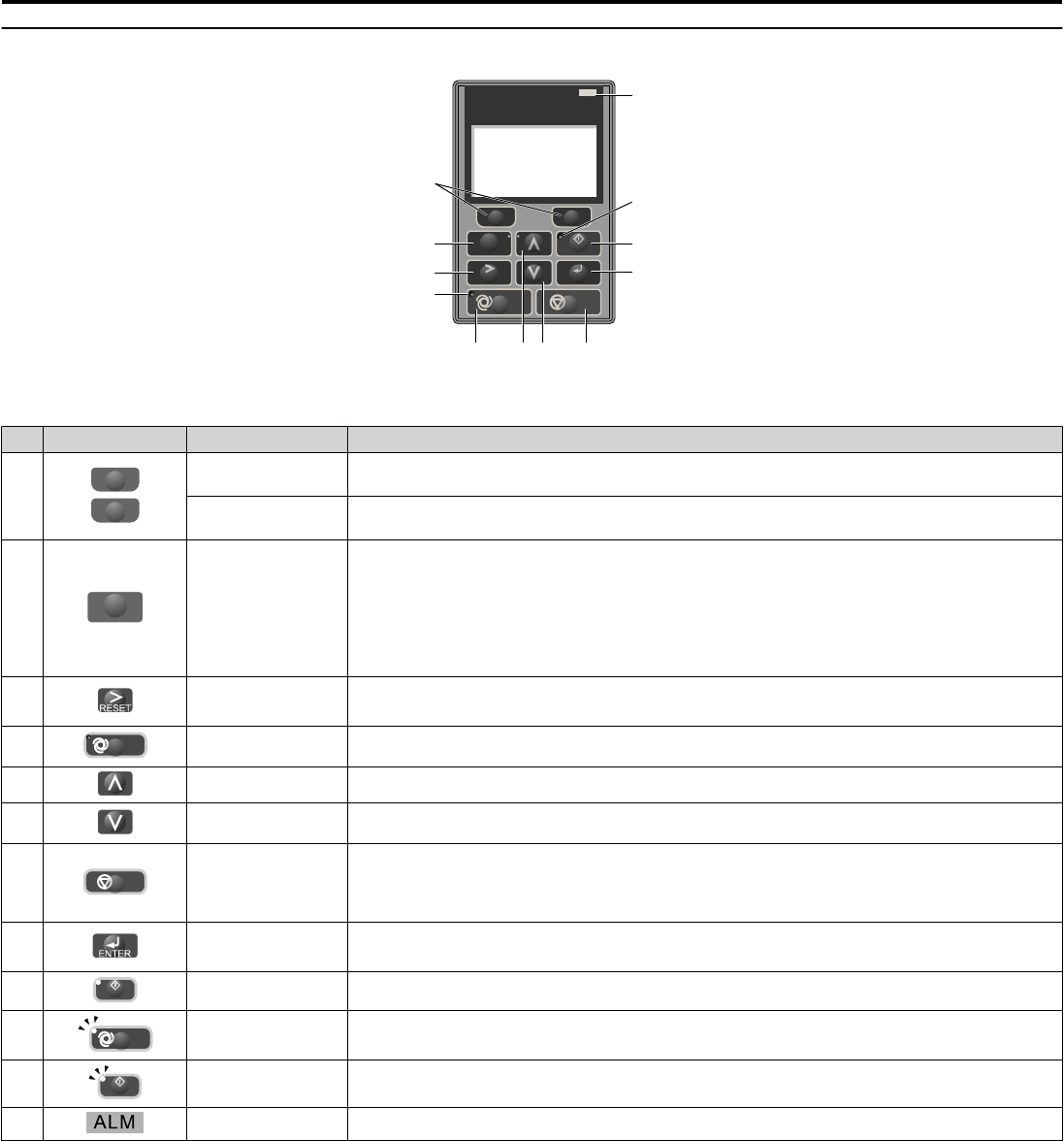

Figure 4.2 Description of HOA Keypad Keys and Displays
No. Display Name Function
1
F1
F2
Function Key F1
(Drive Test)
Selects Drive Test Mode
Function Key F2
(Bypass/Drive)
Toggles selection between Bypass Mode and Drive Mode.
2
ESC
ESC Key
• Returns to the previous display.
• Moves the cursor one space to the left.
• In Drive Mode, pressing and holding this button will return to the Frequency Reference display.
• In Bypass Mode, pressing and holding this button will return to the Bypass Main Menu.
• During parameter entry, allows aborting the current edited value and exits the parameter editing
mode.
3 RESET Key
• Moves the cursor to the right.
• Resets the bypass or drive to clear a fault situation.
4
AUTO
AUTO Key Selects AUTO mode.
5 Up Arrow Key Scrolls up to display the next item, selects parameter numbers, and increments setting values.
6 Down Arrow Key Scrolls down to display the previous item, selects parameter numbers, and decrements setting values.
7
OFF
OFF Key
Selects OFF mode.
If the drive was operating the motor, the motor will stop according to the stopping method selected in
b1-03.
If the bypass was operating the motor, the bypass contactor opens and the motor coasts to a stop.
8 ENTER Key
• Enters parameter values and settings.
• Selects a menu item to move between displays.
9
HAND
HAND Key Selects HAND mode.
10
AUTO
AUTO Light Lit while the drive is in AUTO mode. Refer to page 95 for details.
11
HAND
HAND Light Lit while the drive is in HAND mode. Refer to page 95 for details.
12 ALM LED Light Refer to ALARM (ALM) LED Displays on page 95.
